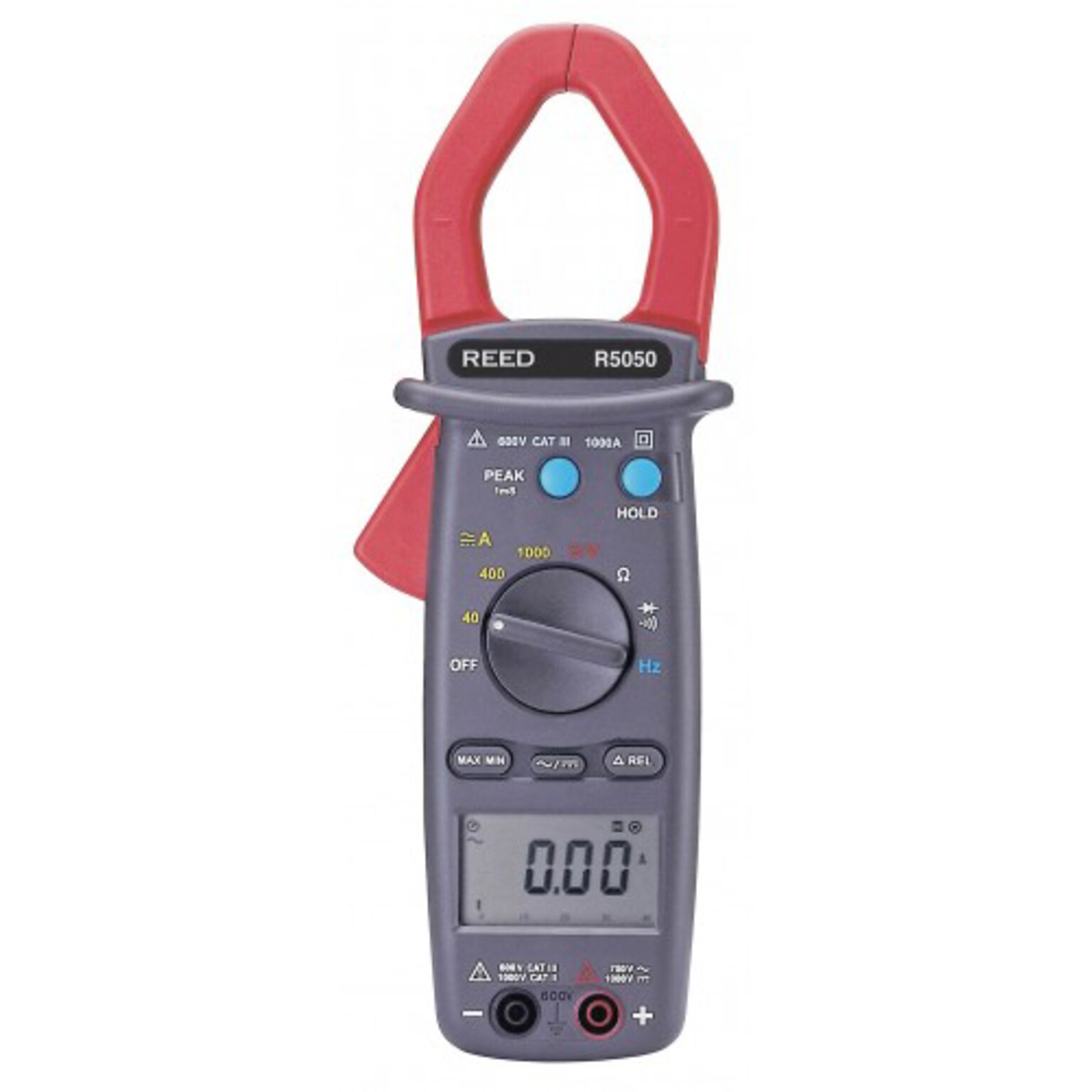

REED Instruments True RMS AC/DC Clamp Meter, 1000A (R5050)
Item #:
901-2313801
Model #:
R5050
Brand:
Reed Instruments
Not yet rated. Be the first to
Write a review!
$229.99
Per each
Upgrade to get 5% off, earn points 10% faster and more.
REED Instruments True RMS AC/DC Clamp Meter, 1000A (R5050)
Limited quantity available: 4 remaining
Customers also viewed
REED SD-6020 Force Gauge Datalogger, 20kg (SD-6020)
Item #: 901-2313749
REED SD-6100 Force Gauge Datalogger, 100kg (SD-6100)
Item #: 901-2313748
REED R5003 Dual Input True RMS AC Voltage/Current Datalogger (R5003)
Item #: 901-2313808
REED R2800 Temperature Simulator (R2800)
Item #: 901-2313814
REED R2810 Thermocouple Calibrator (R2810)
Item #: 901-2313813
REED R5005 True RMS Bluetooth/Waterproof Industrial Multimeter (R5005)
Item #: 901-2313806
Reed Instruments Noncontact Voltage Detector (R5110)
Item #: 901-24552208
Description
Professional grade True RMS AC/DC clamp meter with peak hold function and digital analog bargraph
This durable True RMS clamp meter is capable of measuring AC/DC current and voltage, resistance and frequency. Featuring a 4,000 count LCD display with a 42-segment analog bargraph, the R5050 includes a peak hold and min/max functions
- Measures AC/DC current/voltage, resistance and frequency
- 4000-count LCD display with analog bargraph
- Low battery and overrange indicators
- True RMS measurements
- Min/Max, display hold, peak hold and relative mode
- Diode test and continuity check functions
- Cat. III 600V, Cat. II 1000V safety rating
- 9.5" (h) x 2.6" (w) x 1.4" (d)
- AC current range of 40, 400, 1000A
- AC current accuracy of + or -(1.9% rdg. +5 dgt.)
- DC current accuracy of + or -(2.5% rdg. +10 dgt.)
- AC/DC current resolution of 0.01, 0.1, 1A
- AC voltage range of 400, 750V
- DC voltage range of 400, 1000V
- AC voltage accuracy of + or -(1.5% rdg. +5 dgt.)
- DC voltage accuracy of + or -(1% rdg. +2 dgt.)
- AC/DC voltage resolution of 0.1, 1V
- Resistance range of 400, 4000ohm
- Includes test leads, a battery and a soft carrying case
Specifications
Brand
Reed Instruments
Depth in Inches
1.4
Digital or Analog
Analog
Environmental Monitoring Type
Clamp Meter
Height in Inches
9.5
Selling Quantity
1
Selling Quantity (UOM)
Each
Width in Inches
2.6
