Description

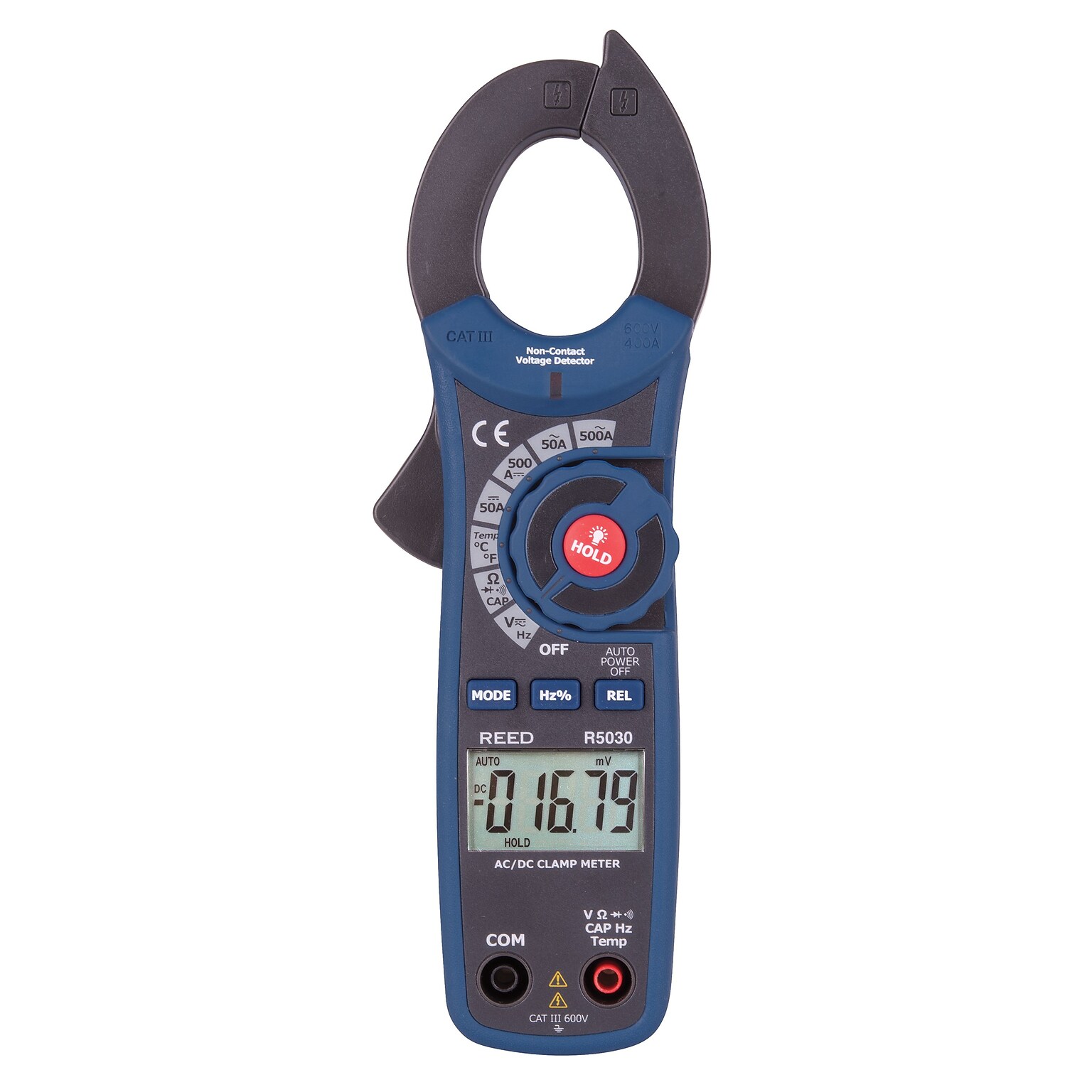

Compact AC/DC clamp meter with backlit display, built-in non-contact voltage detector and contact thermometer
This compact autoranging True RMS clamp meter is capable of measuring AC/DC current and voltage, resistance, frequency, capacitance, duty cycle and temperature. Featuring a 50,000 count backlit LCD display, double molded plastic housing, the R5030 includes diode check and continuity functions and a non-contact voltage detector built into the clamp tip.
- Measures AC/DC current/voltage, resistance, capacitance, frequency, duty cycle and temperature
- 50000-count backlit LCD display with low battery and overrange indicators
- Built-in non-contact voltage detector with LED indicator
- True RMS AC measurements
- Display hold and relative mode
- Diode test and continuity check functions
- Durable double molded plastic housing
- Cat. III 600V safety rating
- 7.9" (h) x 2.6" (w) x 1.5" (d)
- AC/DC current range of 50.00, 500.0A
- AC current accuracy of + or -(2.8% rdg. +30 dgt.)
- DC current accuracy of + or -(2.5% rdg. +30 dgt.)
- AC/DC current resolution of 0.01, 0.1, 1A
- AC voltage range of 500mV, 5, 50, 500, 750V
- DC voltage range of 500mV, 5, 50, 500, 1000V
- AC voltage accuracy of + or -(1.0% rdg. +30 dgt.)
- DC voltage accuracy of + or -(0.1% rdg. +4 dgt.)
- AC/DC voltage resolution of 0.1mV, 0.001, 0.01, 0.1, 1V
- Includes test leads, a thermocouple wire probe, a thermocouple adapter, batteries and a soft carrying case
Specifications
Brand
Reed Instruments
Depth in Inches
1.5
Digital or Analog
Digital
Environmental Monitoring Type
Clamp Meter
Height in Inches
7.9
Material of Item
Plastic
Selling Quantity
1
Selling Quantity (UOM)
Each
Width in Inches
2.6
