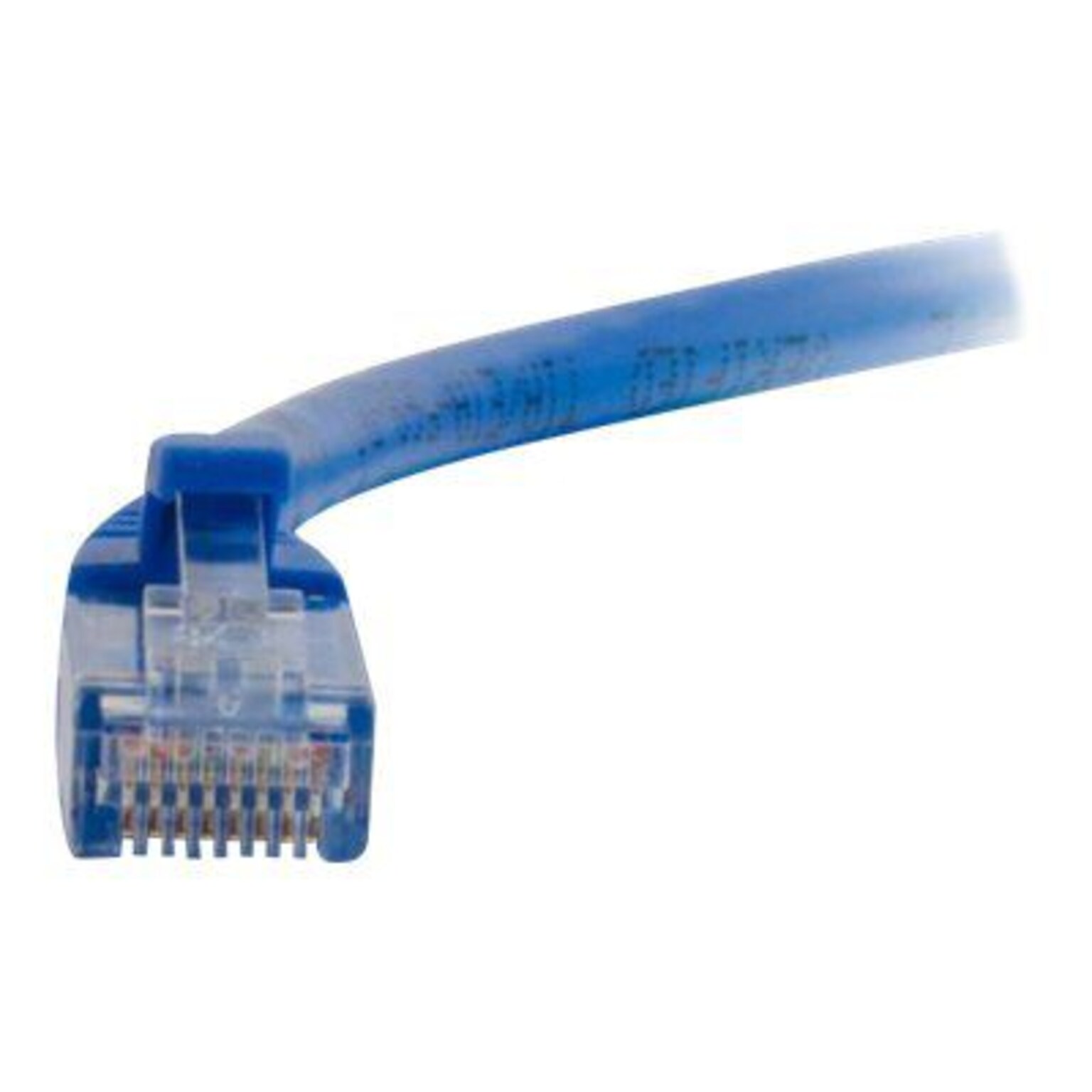

Cables to Go 3ft' Cat6 Snagless Unshielded (UTP) Ethernet Network Patch Cable, Blue (27141)
$2.99
Per each
Cables to Go 3ft' Cat6 Snagless Unshielded (UTP) Ethernet Network Patch Cable, Blue (27141)
Item #:
901-927940
Model #:
27141
Brand:
C2G Cables to Go
Not yet rated. Be the first to
Write a review!
$2.99
Per each
Cables to Go 3ft' Cat6 Snagless Unshielded (UTP) Ethernet Network Patch Cable, Blue (27141)
Description
The C2G ® 3' blue Cat6 snagless unshielded Ethernet network patch cable features RJ-45 male connectors on both the ends for enhanced connectivity. This male/male cable with PVC jacket, truncates both impedance and structural return loss. Cable with 24 AWG stranded bare copper conductor, minimizes near-end crosstalk levels. Patch cable maintains the twist spacing throughout the line up to the termination point. This cable is compatible with network adapters, hubs, switches, routers, DSL/cable modems, patch panels and other high performance networking applications.
- Cat6 snagless unshielded network patch cable for fast Ethernet networks, requiring bandwidth-intensive voice, data or video distribution applications
- Cable length: 3'
- Connections: one 8-pin RJ-45 male connector on both ends
- Connectivity: Wired
- PVC Jacket for added durability and 24 AWG stranded bare copper conductors for excellent signal transmission
- Meets RoHS, TIA/EIA standards and certifications
- Contact material: 50 micron gold-plated copper alloy
- Compatible with network adapters, hubs, switches, routers, DSL/cable modems, patch panels and other high performance networking applications
- Comes in blue color
- Data transfer rate: 1000 Mbps
- Diameter: 6.2 mm + 0.3 mm OD, 0.98 + 0.05 mm conductor, 0.6 mm minimum average thickness
- Voltage rating: 30 V
- Resistance: 9.38 ohm/100 m (maximum) DC conductor, 100 ohm insulation
- Capacitance: 5600 pF/100 m, Propagation delay: 545 ns/100 m (maximum), Delay skew: 45 ns/100 m (maximum)
- Temperature: 60 deg C
- Snagless design protects clips while plugging and unplugging operation
- Perfect for Gigabit 1000base-T, 100base-T, 10base-T (IEEE 802.3), 4/16 Mbps Token Ring (IEEE 802.5), 100 VG-Any LAN, 100 Mbps TP-PMD, voice and T1
- Weight: 0.11 lbs.
- Comes with lifetime warranty
Specifications
Brand
C2G Cables to Go
Cable Gauge (AWG)
24
Cable Jacket Material
PVC
Cable Length (ft)
3
Cable Use
Networking
Color Family
Blue
Conductor Material
Stranded Bare Copper
Ethernet
Yes
Ethernet Cable Type
CAT-6
True Color
Blue
Warranty Information
Lifetime
