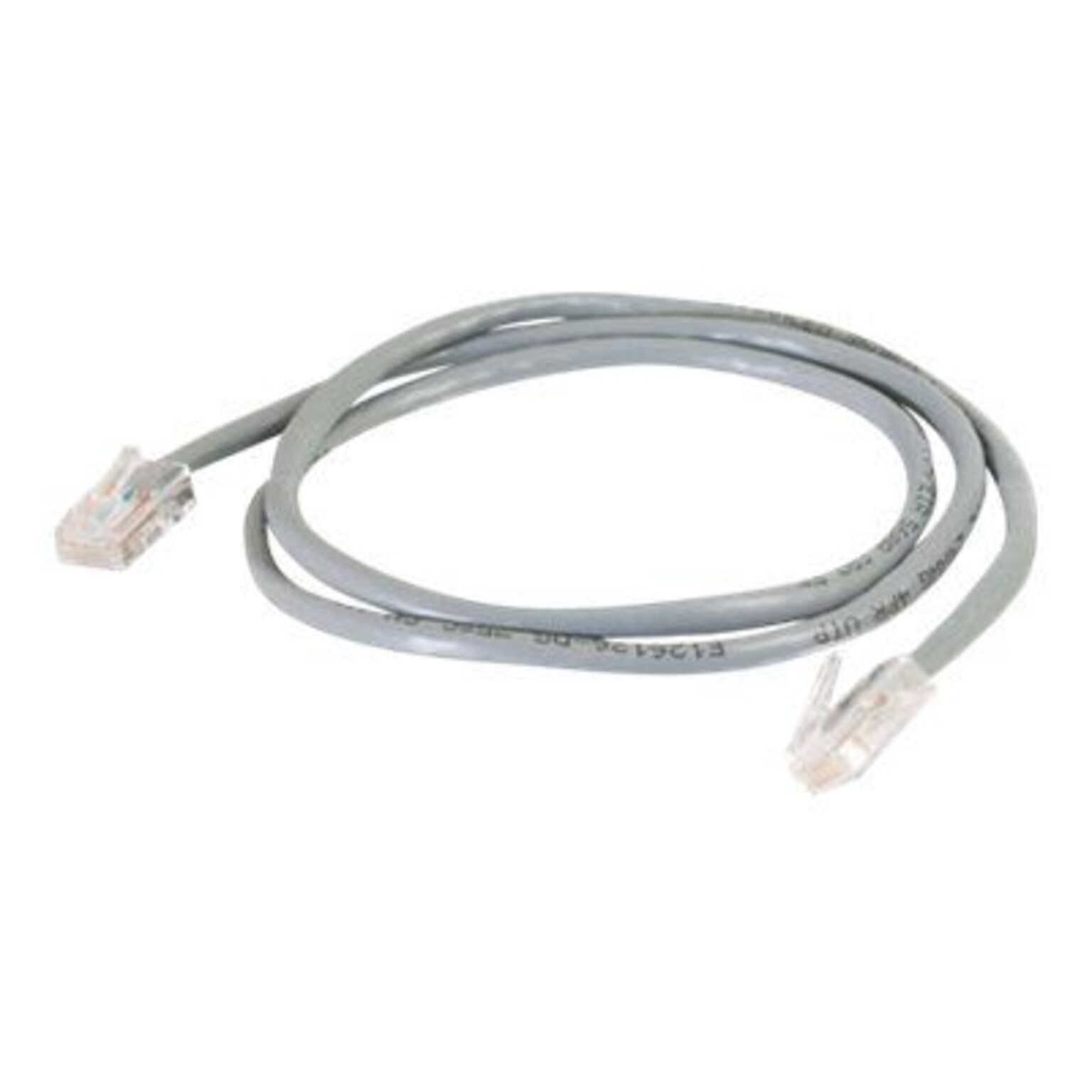

10ft Cat5e Non-Booted Unshielded (UTP) Network Patch Cable - Gray
Item #:
901-2418556
Model #:
1773729
Brand:
C2G Cables to Go
Not yet rated. Be the first to
Write a review!
Loading...
$3.99
Per each
Upgrade to get 5% off, earn points 10% faster and more.
10ft Cat5e Non-Booted Unshielded (UTP) Network Patch Cable - Gray
Description
The C2G ® 10' male to male category 5e gray non-booted patch cable features RJ-45 male connectors on both the ends for enhanced connectivity. This cable with PVC jacket, truncates both impedance and structural return loss. High conductivity copper cable minimizes near-end crosstalk levels. Applications requiring bandwidth-intensive voice, data or video distribution need fast Ethernet computer networks. Bonded paired cable maintains the twist-spacing throughout the line up to the termination point. This cable is compatible with hub, switch, router, network adapter, modem DSL/cable, patch panel and other twisted pair applications.
- Cable length: 10'
- Connections: 1 x RJ-45 male to 1 x RJ-45 male
- Conductor: 4 twisted pair 24 AWG stranded bare copper, Construction: Polycarbonate connector
- Meets all Cat5e TIA/EIA, UL and Meets RoHS Compliant standards or certifications
- Suitable with network adapters, hubs, switches, routers, DSL/cable modems, patch panels and other high performance networking applications
- Features unshielded twisted pair technology for good LAN network connectivity
- Come in gray color
- Jacket material: PVC, Minimum average thickness: 0.55 mm, Outer diameter: 5.3 + 0.15 mm
- Conductor DC resistance: 89 ohm/km (maximum)
- Insulation resistance: 100 ohm/km (minimum)
- Dielectric strength: 500 MV/m
- Insulation: HDPE, Diameter: 0.95 + 0.02 mm
- Plated with 50 micron gold to resist corrosion
- Perfect for 1000 BASE-T, 100 BASE-T; 10 BASE-T, 4/16 Mbps Token Ring, 100 VG-AnyLAN, 100 Mbps TP-PMD, 55/155 Mbps ATM and voice applications
- Weight: 0.22 lbs.
- Comes with lifetime warranty
- Category 5e for Network Device
Specifications
Brand
C2G Cables to Go
Cable Gauge (AWG)
24
Cable Jacket Material
PVC
Cable Length (ft)
2
Cable Length (Inches)
120
Cable Use
Networking
Color Family
Gray/Silver
Conductor Material
Copper
Connector Finish
Gold-Plated
Connector Gender
Male to Male
Data Transfer Rate (Gbps)
0.1
Data Transfer Rate (Mbps)
100
Device Type
Computer
Direct Attach Cable (DAC)
No
End 1 Connector Type
RJ45
End 2 Connector Type
RJ45
Ethernet
Yes
True Color
Gray
Warranty Information
Limited Lifetime Warranty
